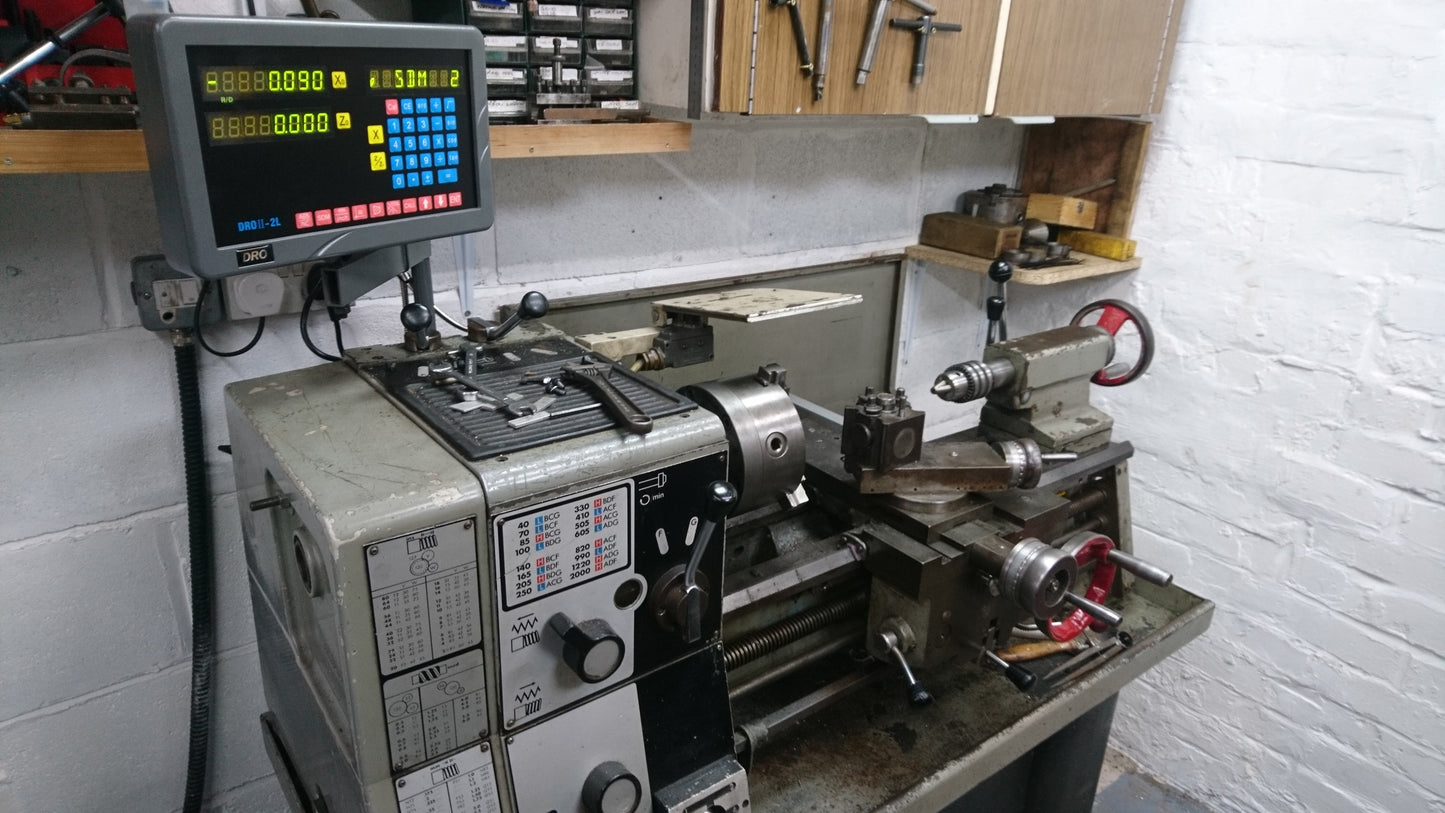

Colchester Student lathe Digital Readout system 2 axis

Digital readout system to suit the Colchester Student Lathe

The DRO system to suit the Colchester Student lathe comes in two different bed lengths - Check both dimension before ordering.

1. The Short bed is 25 inch between centres and has a 1000mm bed length

2. The long bed version is 40 inch between centres and 1400mm bed length

What's in your kit

Goodwin 2 axis console - which is latest version and does come with an arm suitable for the lathe.

X 270mm travel thin profile scale with special backing bar which speeds up the fitting process - there are also brackets for the reader head designed to streamline the fitting process.

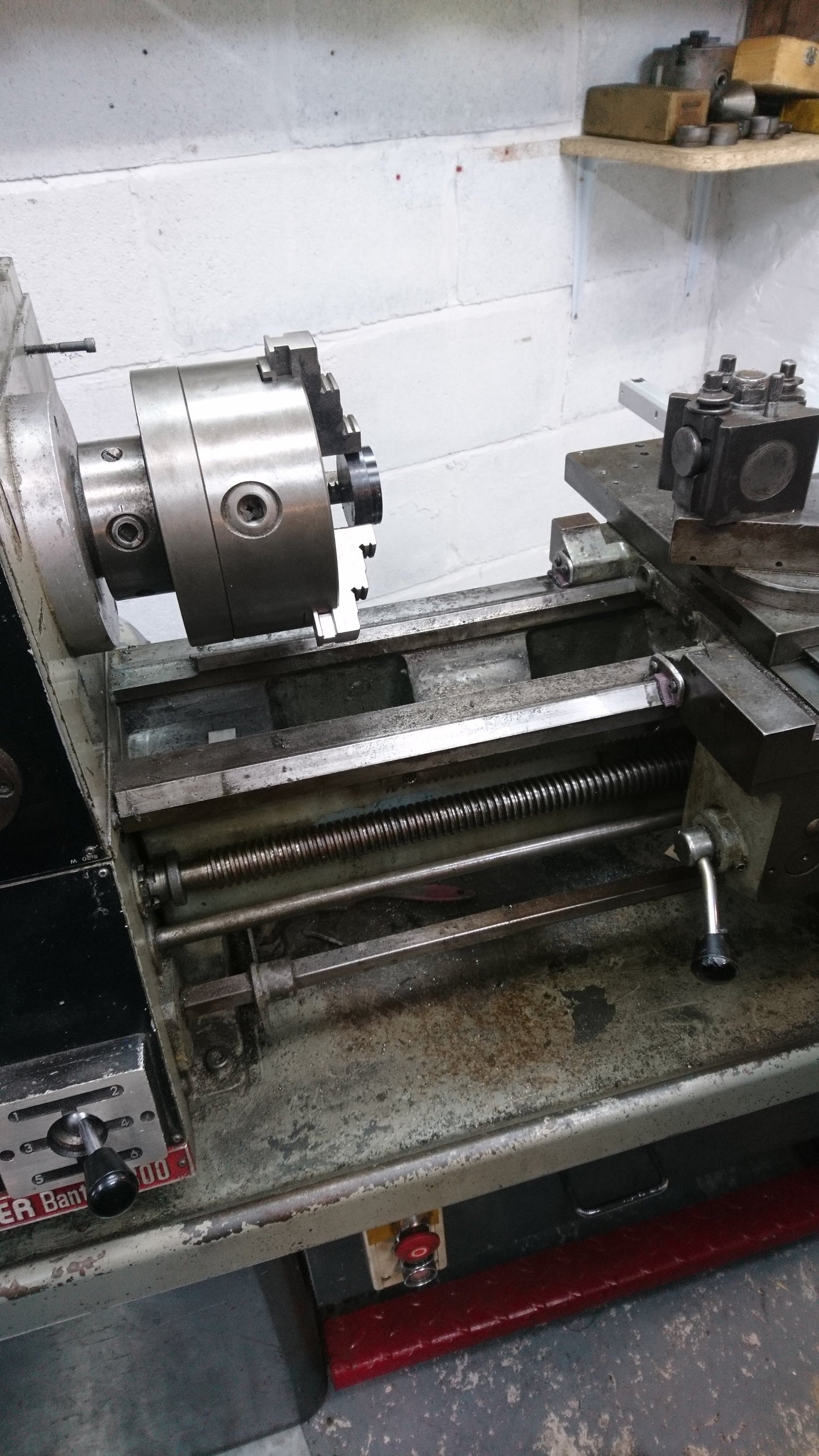

Z 670mm travel scale for the short bed or 1000mm travel scale for the long bed lathe - comes with all brackets required.

Scale covers

3m armored cables

Fitting kit

Fitting instructions - showing the Colchester Student Lathe

The 2 axis DRO system comes with the industry standard glass linear scales which have 5 micron resolution.

The Goodwin 2 axis console will arrive already set in diameter mode - the console can also be set in radius mode if your prefer to work that way.

There is very easy tool setting upto 200 tool but probably 4-6 tools is all you will need.

Some key console features

1. MM/Inch - Metric / Imperial

2.  ABS /INC Absolute and Incremental

3. Tool memory upto 200 tools.

4. Calculator

5. Single button Zero or the X or Z axis
