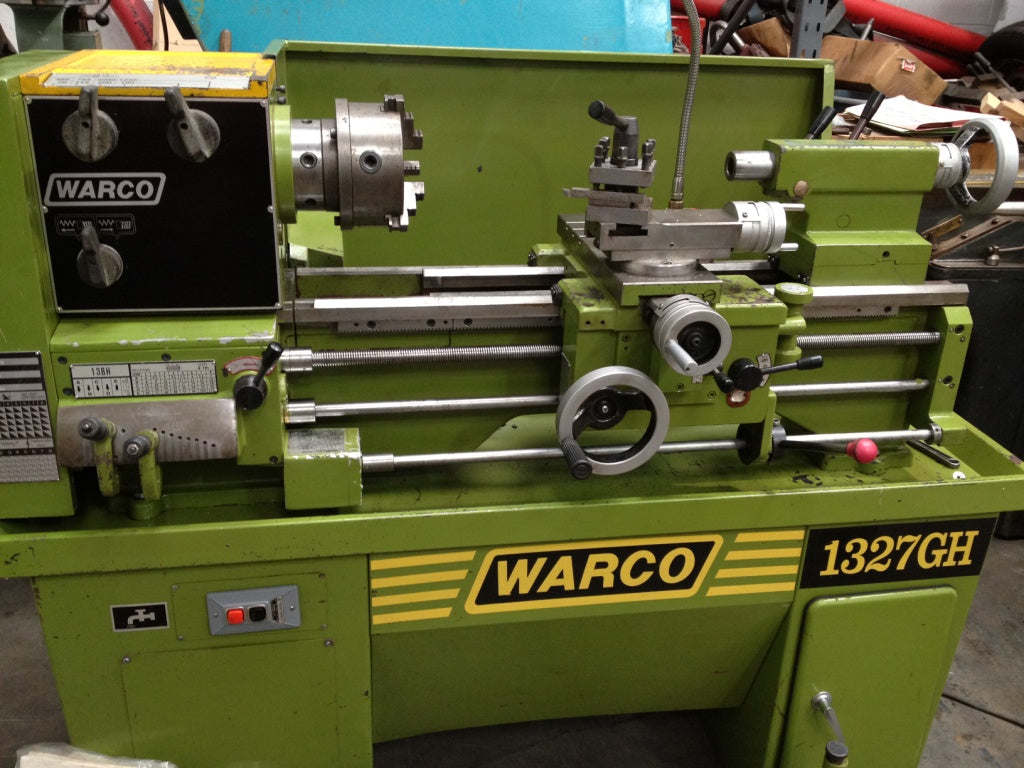

Warco 1327 lathe

Digital readout system to suit the Warco 1327 lathe . The DRO system to suit the Warco lathe comes with both Linear scales the console and the full fitting kit. The DRO systems for the Warco is available in glass linear scales and magna scale.

The DRO system to suit the Warco 1327 lathe

What's in your kit

Goodwin 2 axis console - which is latest version and does come with an arm suitable for the lathe.

X 220mm travel thin profile scale with special backing bar which speeds up the fitting process - there are also brackets for the reader head designed to streamline the fitting process.

Z 570mm travel scale - comes with all brackets required.

Scale covers

3m armoured cables

Fitting kit

Fitting instructions

The 2 axis DRO system comes with the industry standard glass linear scales which have 5 micron resolution.

The Goodwin 2 axis console will arrive already set in diameter mode - the console can also be set in radius mode if your prefer to work that way.

There is very easy tool setting upto 200 tool but probably 4-6 tools is all you will need.

Some key console features

1. MM/Inch - Metric / Imperial

2.  ABS /INC Absolute and Incremental

3. Tool memory upto 200 tools.

4. Calculator

5. Single button Zero or the X or Z axis
